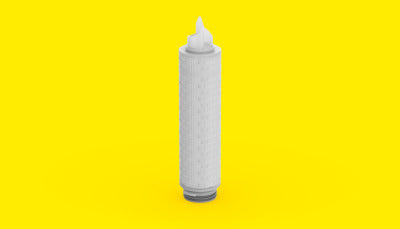

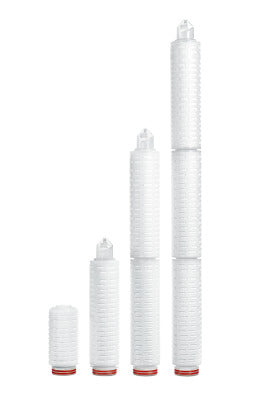

Sartorius, 5102507H1, Sartolon | Cartridge | 0.2µm | 10"

Effective Filtration Area: 0.6 m² | 6.5 ft²
Pore Size: 0.45 µm prefilter | 0.2 µm final filter
Membrane Material: Polyamide (Nylon)
Sterilization: Delivered non-sterile: In-line steamable | Autoclavable
Adapter: 2-Flange Bayonet | 226 Double O-ring
O-ring material: Silicone

Specifications
Accessories Information:
Adapter: Bottom: 2-Flange Bayonet w. 226 double o-ring | Top: S-Adapter

Applications:
Application: Filtration of antibiotics and organic solvents
Modality: Buffer & Auxiliaries Filtration

Biological Information:
Bacterial Retention: Quantitative Retention of 1 × E7 CFU/cm² Brevundimonas Diminuta ATCC® 19146 per ASTM methodology

Compliance Information:
Bacterial Endotoxins: < 0.25 EU/mL as determined by the LAL test
Biological Reactivity: All materials of this filter element meet the requirements of the current USP Biological Reactivity tests <88> for plastics Class VI (Systemic Injection, Intracutaneous and Implantation tests).
Extractables: The total amount of extractables is well below the limits established by the current USP unter "Sterile Water for Injection".

Connections (Physical):
Connector Inlet: 2-Flange Bayonet Adapter with 226 Double O-ring (25)
Connector Outlet: 2-Flange Bayonet Adapter with 226 Double O-ring (25)

Dimensions:
Filter Size: 10"(0.6 m² / 6.5 ft²)
Outer Diameter: 70 mm

General Specifications:
Capsule/Cartridge Format: Cartridges
Maximum Allowable Back Pressure: 2 bar (29 psi) at 20°C; 1 bar (14.5 psi) at 80°C
Maximum Diffusion: 13 mL/min at 2.5 bar | 36 psi
Minimum Required Bubble Point: 3.0 bar | 43.5 psi
Vent Valve: N/A

Materials of Construction:
Filter Material: Nylon (NY)
Housing Material: Polypropylene (PP)
Material o-ring | seal: Silicone (SI)
Membrane Material: Polyamide (PA/NY)
Support Fleece: Polypropylene (PP)

Operating Conditions:
Maximum Differential Pressure: 20 °C: 5 bar, 80 °C: 2 bar

Physicochemical Information:
Non-Fiber Releasing: This filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72.
Pore Size Final-filter: 0.2 µm
Pore Size Pre-filter: 0.45 µm

Product Information:
Brand: Sartolon
Pack Size: 1
Type: Cartridge | 10"

Sterility/Purity:
Delivery Condition: Non sterile - Autoclavable | Steamable
Sterilization Method: Autoclavable & In-Line Steam Sterilizable

Usage Protocols:
Sterilization Procedures: In-Line Steam Sterilization: at 134 °C, 20 min., 0.5 bar, min. 25 Cycles; Autoclaving: at 134°C, 30 min, 2 bar, min. 25 Cycles
